✍️Description

In this project, we design a system based on a Tactile-Enabled Roller Grasper to achieve in-hand manipulation without access to object shape prior or vision information. To localize and reconstruct object with noisy and narrow tactile sensor data, we introduce tactile SLAM to achieve object pose estimation and shape reconstruction. To strategically tradeoff exploration of the global object shape with efficient task completion, we introduce Bayesian optimization to achieve task-driven exploration.
Contribution: In this project, I mainly contribute to the Tactile SLAM and BO-based exploration in the simulation.

💁Introduction

This work studies how a robot can reorient objects in-hand with limited prior knowledge about object shape. Specifically, we investigate in-hand manipulation in highly occluded settings where the robot cannot rely on vision and instead leverages tactile sensing to feel the object’s shapes and localize it in space. Our task consists of reorienting a diverse set of objects to different target orientations. To ensure that the robot does not have access to the object shape before completing the task, we avoid using an image or point cloud to specify the target orientation of the object to be manipulated. Instead, we formulate our task as a peg insertion task. The robot is given an image of a hole, and the robot must determine how to reorient an object to fit into that hole. The shape of the hole provides minimal information about the 3D-shape of the object, ensuring that our assumption that the robot is working with an unseen object holds.
notion image

🖥️Simulation Results

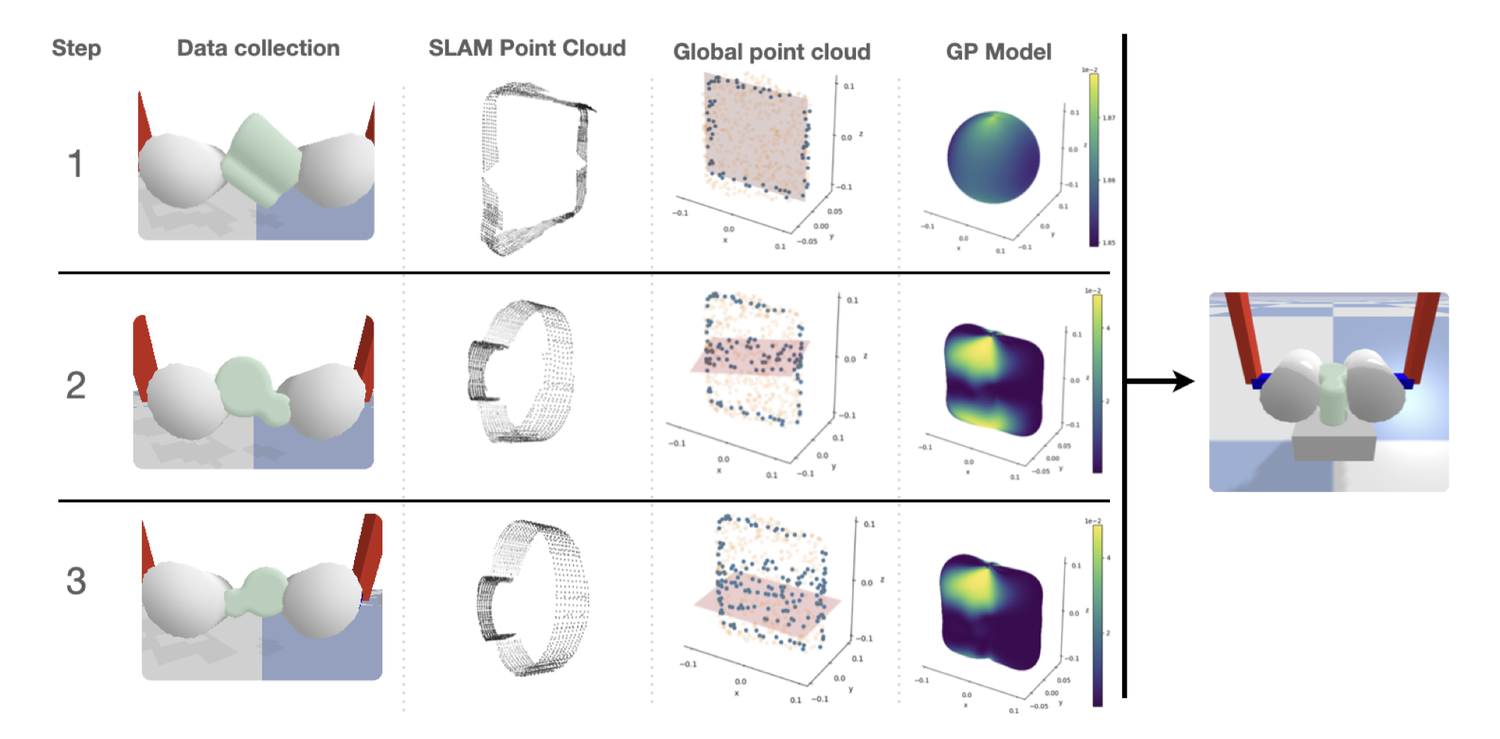

A demonstration of the reorientation procedure. Each row corresponds to one exploration step. In the first column, the Roller Grasper picks up the object, rolls it in hand and captures tactile data from the Gelsight. In the second column, tactile SLAM merges the tactile image using ICP and graph optimization to get the section point cloud. The third column shows the down-sampled point cloud’s relative position to the whole object. The fourth column shows the probabilistic object model described by the GP. Our algorithm stops when the estimated insertion error is less than 3 mm.
A demonstration of the reorientation procedure. Each row corresponds to one exploration step. In the first column, the Roller Grasper picks up the object, rolls it in hand and captures tactile data from the Gelsight. In the second column, tactile SLAM merges the tactile image using ICP and graph optimization to get the section point cloud. The third column shows the down-sampled point cloud’s relative position to the whole object. The fourth column shows the probabilistic object model described by the GP. Our algorithm stops when the estimated insertion error is less than 3 mm.
Fig. 9: Number of exploration steps required for successful object insertion using different algorithms in simulation. The boxplot indicates the 25th percentile, median, and 75th percentile over the 15 objects tested.
Fig. 9: Number of exploration steps required for successful object insertion using different algorithms in simulation. The boxplot indicates the 25th percentile, median, and 75th percentile over the 15 objects tested.

🚘Hardware Implementation

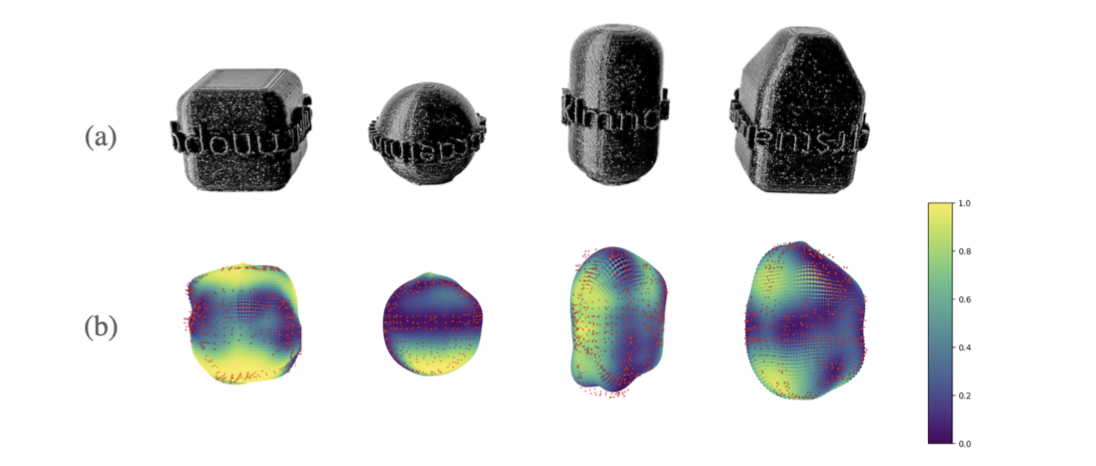

Top: Four objects manipulated by the hardware Roller Grasper. Bottom: Gaussian reconstruction of the object shape. The red points correspond to a down-sampled subset of the data collected by the tactile sensors.
Top: Four objects manipulated by the hardware Roller Grasper. Bottom: Gaussian reconstruction of the object shape. The red points correspond to a down-sampled subset of the data collected by the tactile sensors.

🪧Demonstrations

🤖Hardware System

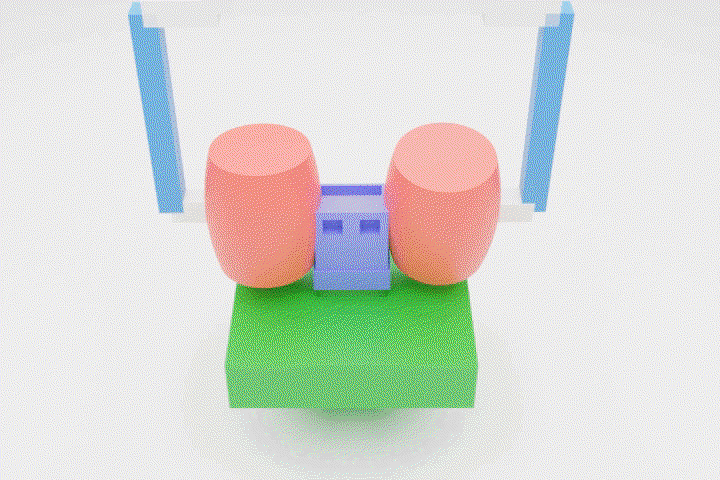

Roller Grasper rolling the object in hand
Free to move joints

👮Control Policy to Reorient Object

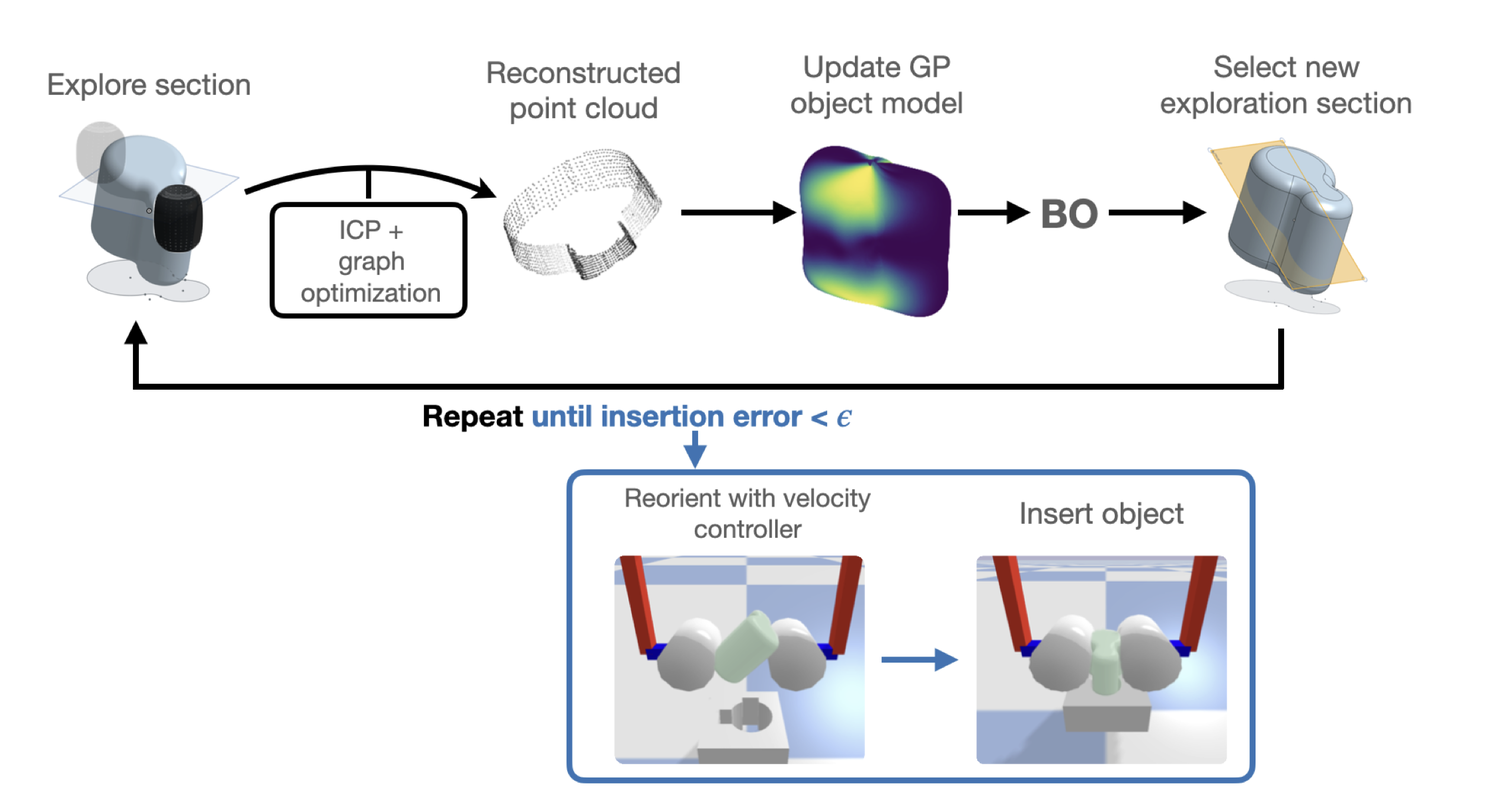

🚇Whole Pipeline Demo

🗣️Full Presentation

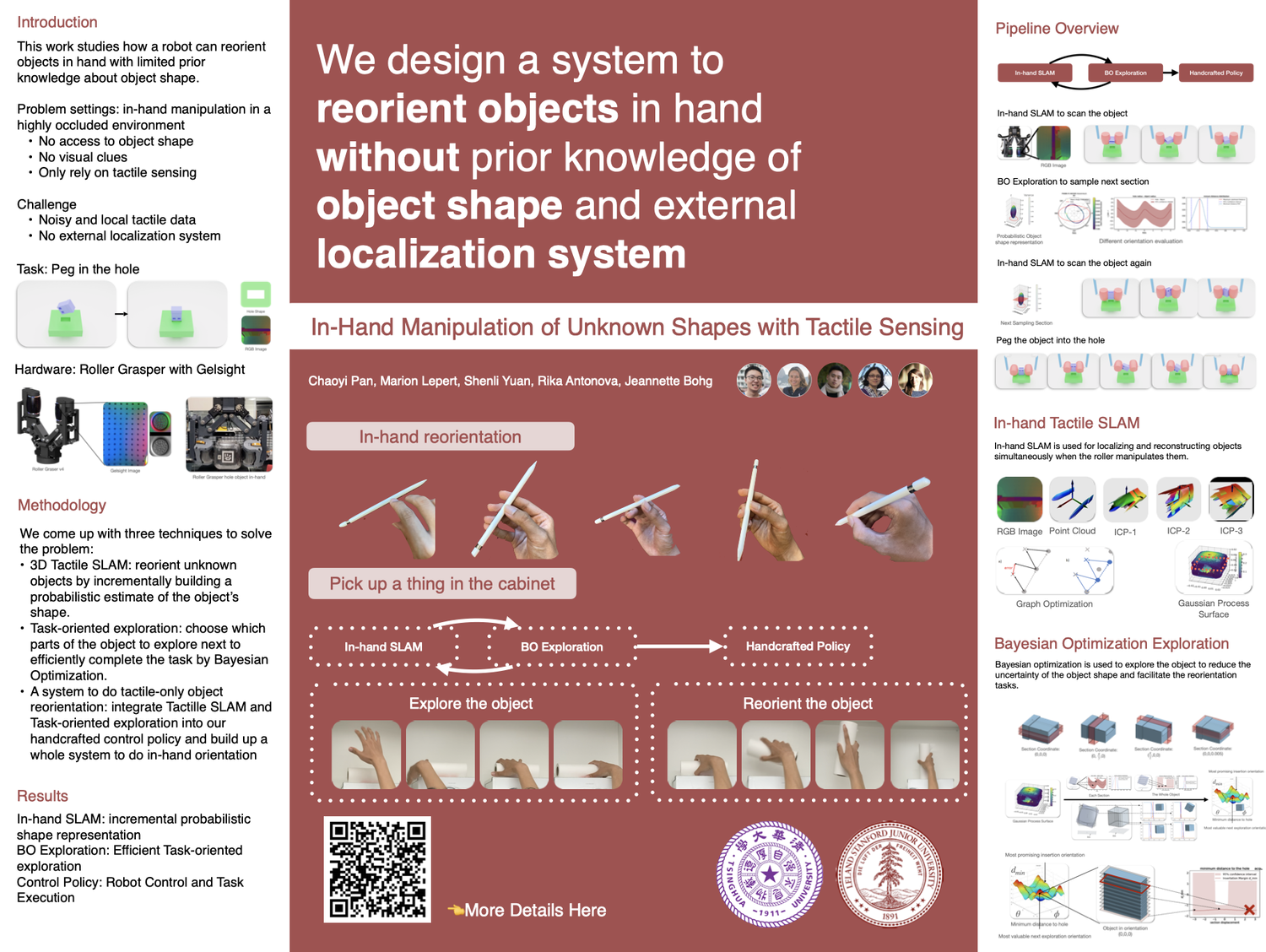

💡Digital Poster
